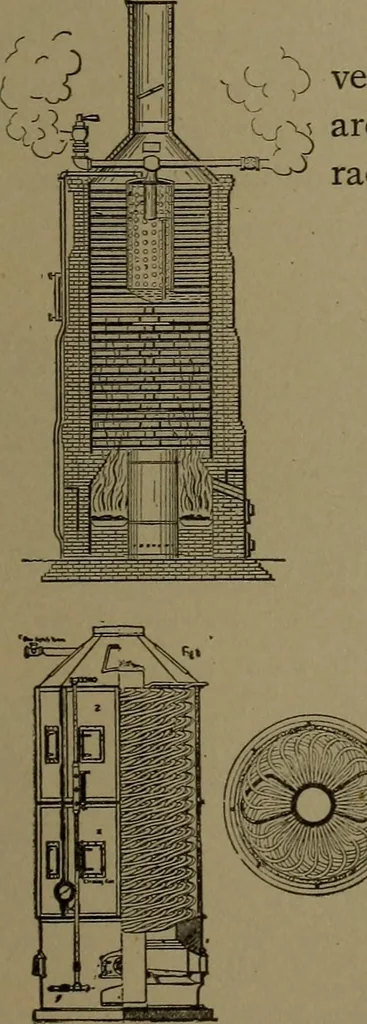

190. YARROW WATER TUBE BOILER.—Inclined sections of straight tubes from water-headers each side of the fire grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERS WATERTUBE BOILER. —Furnacewalls are coils of pipe. Coilsover the fire are… … 192. HAZELTON BOILER.—A central^L^ ) vertical drum in which tubes, with closed ends,Ox^ are screwed radially. The grate is beneath the~^ radial tubes and around the base of the drum. 193. CLIMAX BOILER.—A central vertical water and steam drum, with bentY v5^\ tubes expanded in it, and inclined to…
