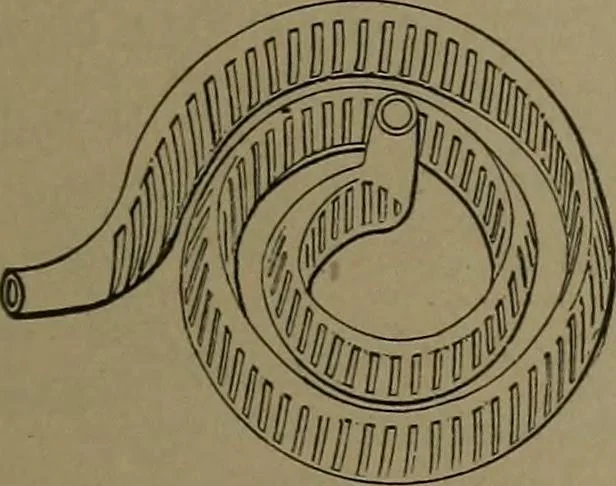

199-200. BOILER OFTHE SERPOLLET TRICYCLE.—The steamgenerating surface is madeof iron pipe, flattened andcorrugated, then coiledinto a volute form with theinner end turned up, and the outer end to project through the furnace shell. The cuts show a vertical section and horizontal plan. … 201. SERPOLLETS STEAM GENER-ATOR, showing the corrugated flattened tubecoiled into a volute. The width of the internalspace is less than one-eighth of an inch.
