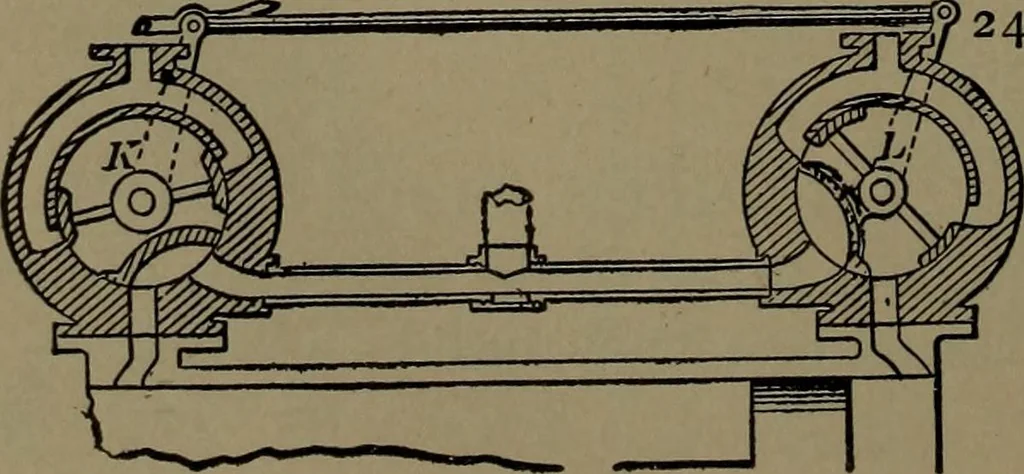

An illustration from Mechanical movements, powers and devices, 1907, leaf 83 — 243. GRIDIRON SLIDE VALVE,for large port area with small motion of thevalve. … 44. ROTARY VALVES.-^The valves K and L arethree-winged cylinders, andare nearly balanced by thedouble inlet ports of thevalve chamber. STEAM POWER. 73
