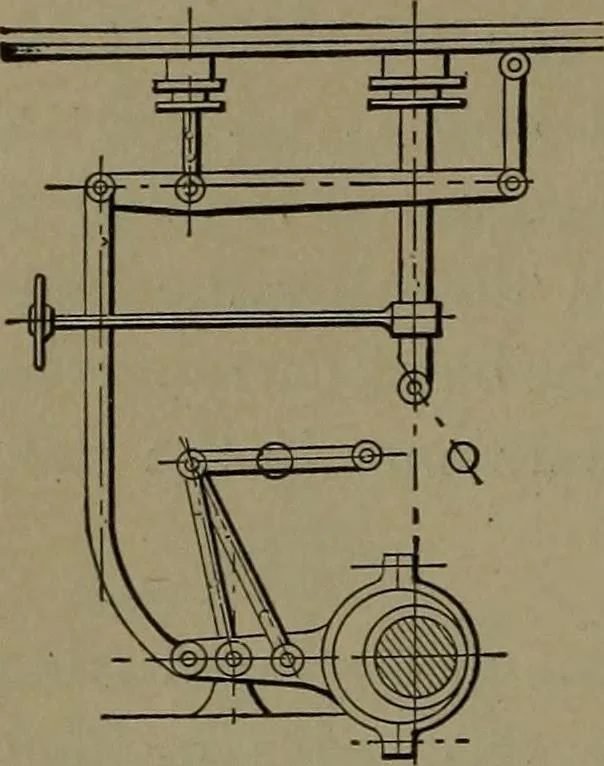

258. JOYS VALVE GEAR for a horizontal engine. Adjust-ment is made by the angu-lar position of the slottedlink. Valve motion by crankrod and links. 76 STEAM POWER. … 259. BREMME VALVE GEAR withsingle eccentric. The eccentric arm is rockedby the double link connection and is reversedby throwing the link joint over by the handscrew and sector arm, not shown in cut.
