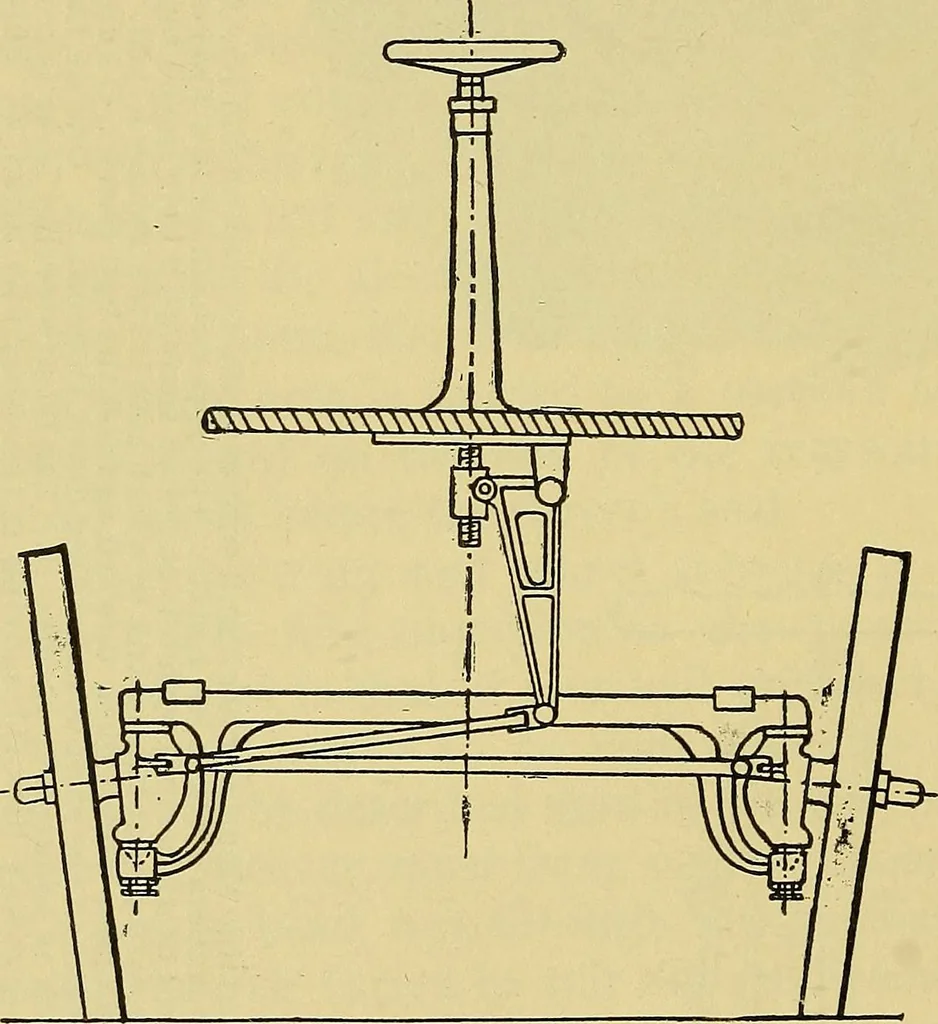

t angle, isbetween fifty and sixty degrees, giving an inclination for eacharm of between twenty-five and thirty degrees. Some of the bestmakes of carriage have it at or about twenty-five degrees. Asshown in the accompanying diagrams, however, various de-signers have modified the typical arrangement… … Fig. 52.—Steering Arrangement of the Clarkson-Capel Steam Wagon. The spindle of thesteering wheel carries a screw at its end, which works a boss, as the wheel is turned,thus actuating the lever and drag-link attached to the arm of one of the axle pivots. bell crank having the total required angle,…
