Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 279

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 279

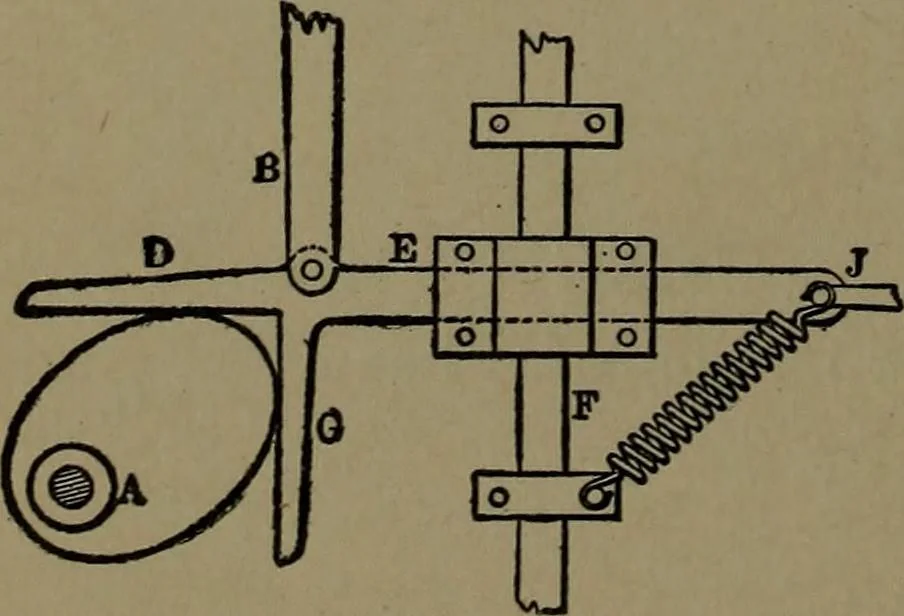

1104. CAM MOTION.—Various appli-cations of cam followers, with direct andoscillating motion. … 1105. DOUBLE-CAM MOTION,from a sliding follower. The arm Eof the follower, slides freely in thebox, clamped to the vertical shaft,giving two equal motions at rightangles. MOTION AND DEVICES CONTROLLING MOTION. 273
