Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 91

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 91

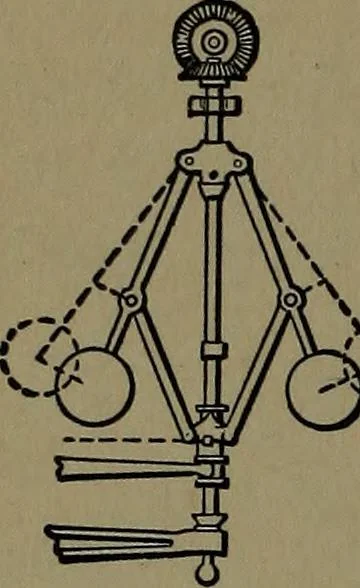

297. ENGINE GOVERNOR, in which the armscross each other and are extended above in a linkmovement. The arms are guided in a slotted sector. 84 STEAM POWER. … 298. CENTRIFUGAL BALL GOVERNOR.—The balls, with arms pivoted to the revolvingspindle, through their connections raise or lower the ^ grooved sleeve on the lower part of the spindle. k^J The yoke of the valve lever rests in the groove andthus controls the valve gear by the varying speed ofthe…
