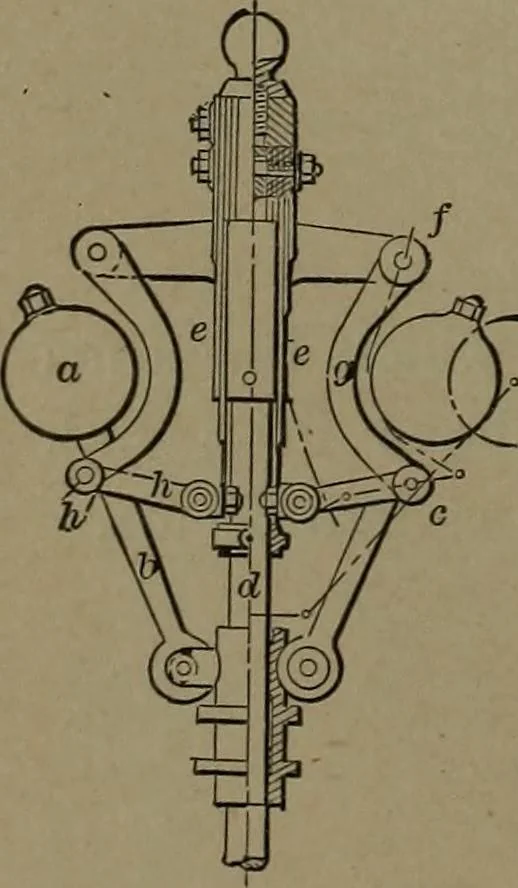

300. DIRECT-ACTING CENTRIFUGALGOVERNOR.—The balls traverse the radialarms a^ a, on friction rollers and are restrainedby steel ribbons that pass over a pair of pul-leys at G, and are attached to the spring andgrooved collar that operates the lever andthrottle valve. … 301. SPRING BALANCED CENTRIF-UGAL GOVERNOR, Proell patent—The/-^^-v balls are attached to the inverted arms b, b, and J raise the collar sleeve by their outward throw.The movement is restrained by the vertical leafsprings and links. The lift is controlled by the@\ curved links hung from the cross…
