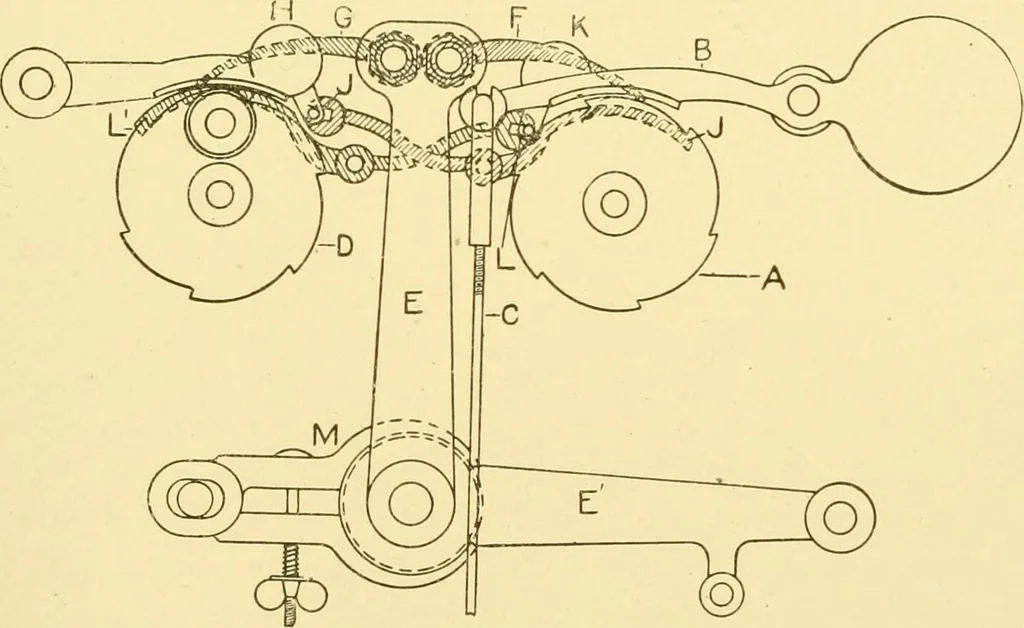

sketch of which it is letteredE. There are two connecting rods, one for each lever. D. Multiplying ratchet which is fixed to the multiplierchain barrel. E. E. Elbow lever. F. G. Driving pawls which are mounted on the upper endof E and work in opposite directions. H, Small lever which rests on the… … Fig. 110. Upper Box Motion. The motion is driven through a connecting rod with a discon-nectmg device from a shell cam fixed on the pick-cam shaft. Astud is bolted to the Icjom side, forming a bearing for one end of asmall lever which carries two studs .at the other end, one on eachside. One of…
