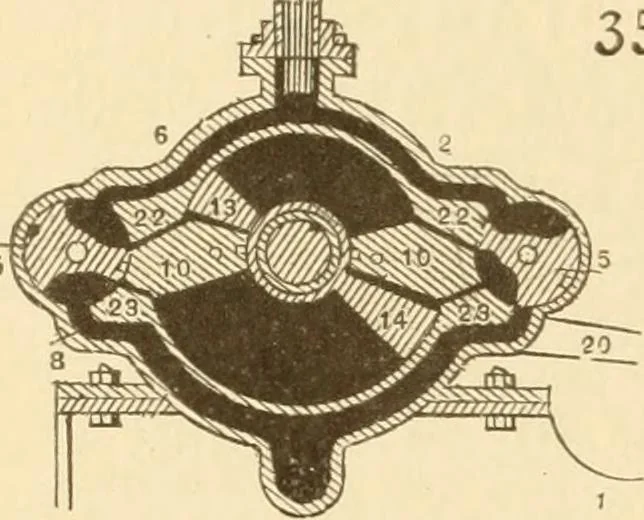

fly-wheel. Each cylinder issingle-acting. Valves are on a central disc at A. 96 STEAM POWER. 351. BATES COMPOUND VIBRATINGENGINE.—The upper section of the cyl-inder has a shorter radius than the lowersection for the compound effect. The shaftand wings are concentric and vibrate be-tween two…
