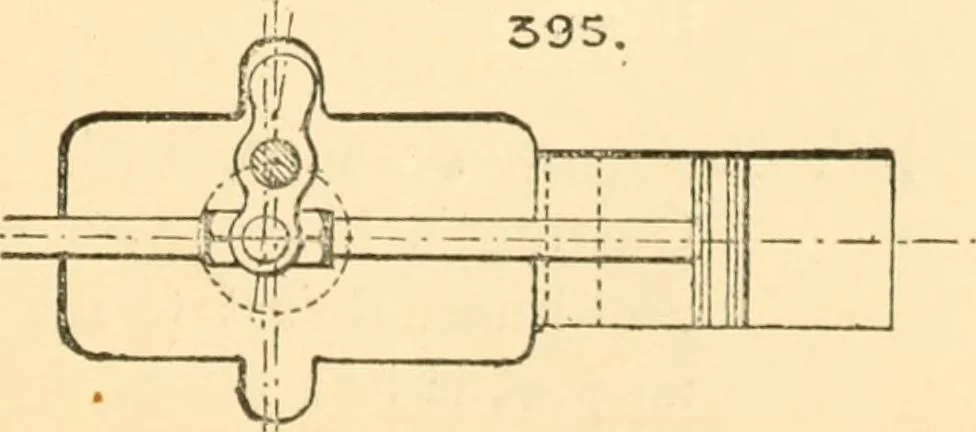

Xv^2j5asJ^ 595. … 58 THE ENGINEERS SKETCH-BOOK. 396. Slot and crank motion. The pin usually runs in a sliding block. 397. Segment pinion and double rack motion. 398. Rack and pinion. The pinion is sometimes made so as to be driven on one stroke and run loose on the other, by a clutch orratchet motion, such as Nos.…
