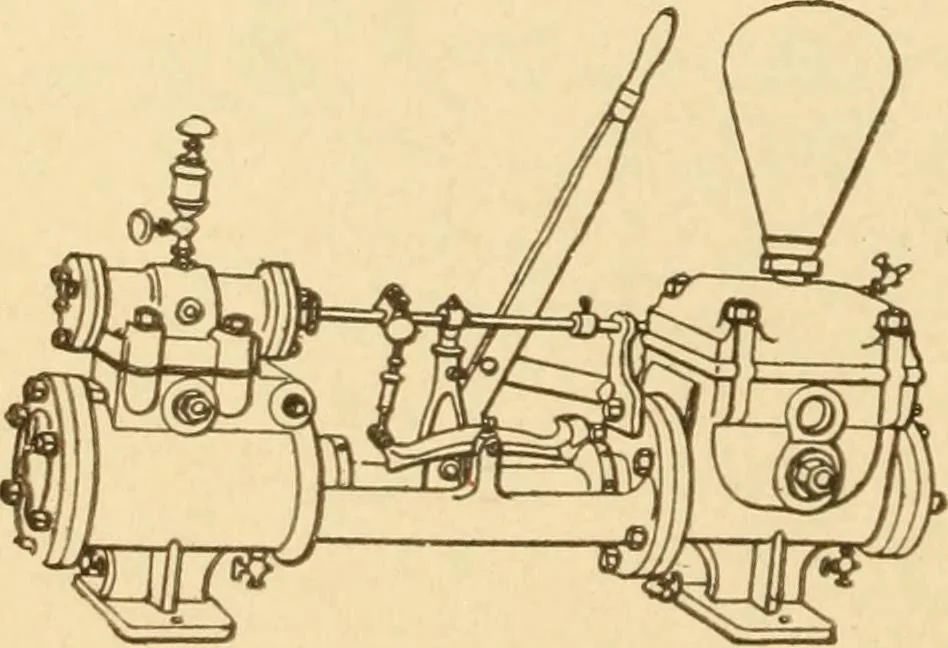

393. SELLERS SELF-ADJUSTING INJECTOR.—The water nozzle G has a freemovement in the case and cageat S. With too much water for the steam, the nozzle is pushed back and partially closes the water area. Self-adjusting. 394. STEAM PUMP, with ro-tating piston valve and curved tap-pet. An arm on the… … STEAM APPLIANCES. 109
