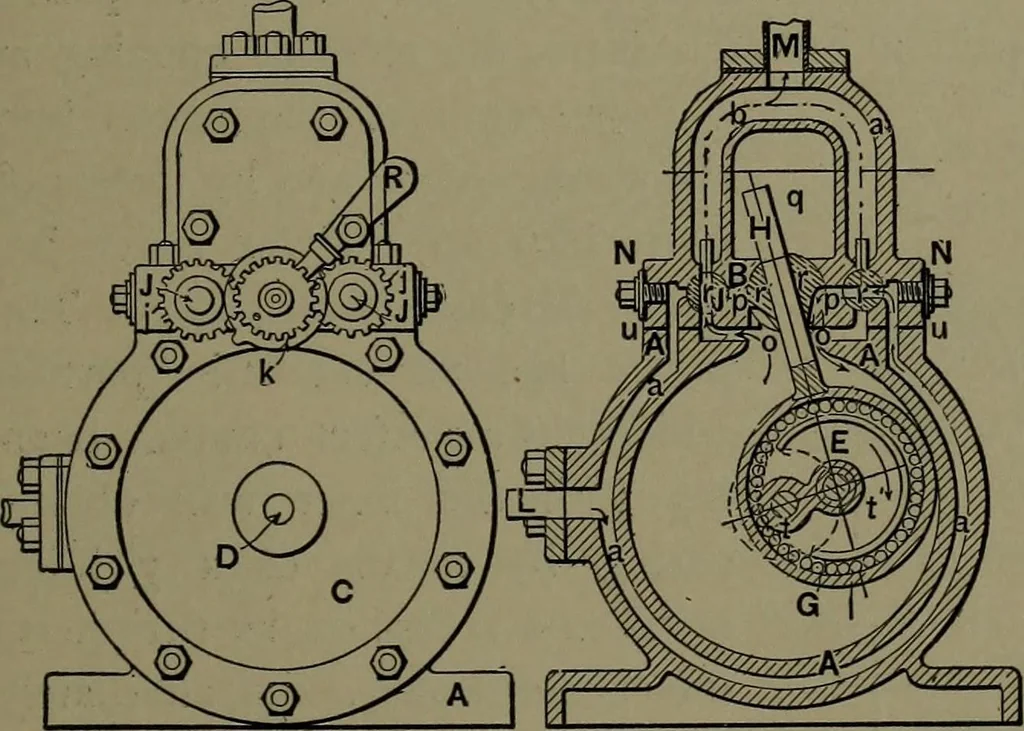

to the direction of run-ning it; and the maneuvering is very easily effected by means of asimple handle that actuates a toothed wheel that gears with the twococks. The motion of the piston ring is transmitted to the drivingshaft, D, through the intermedium of two symmetrical cams, E, unitedat their… … io6 STEAM POWER APPLIANCES. is placed a series of tempered steel balls that roll upon a correspond-ing path arranged in the interior of the piston ring. Two cheekstraversed by the driving shaft close the cylinder at the sides, and aperfect tightness between these cheeks and the lateral faces of…
