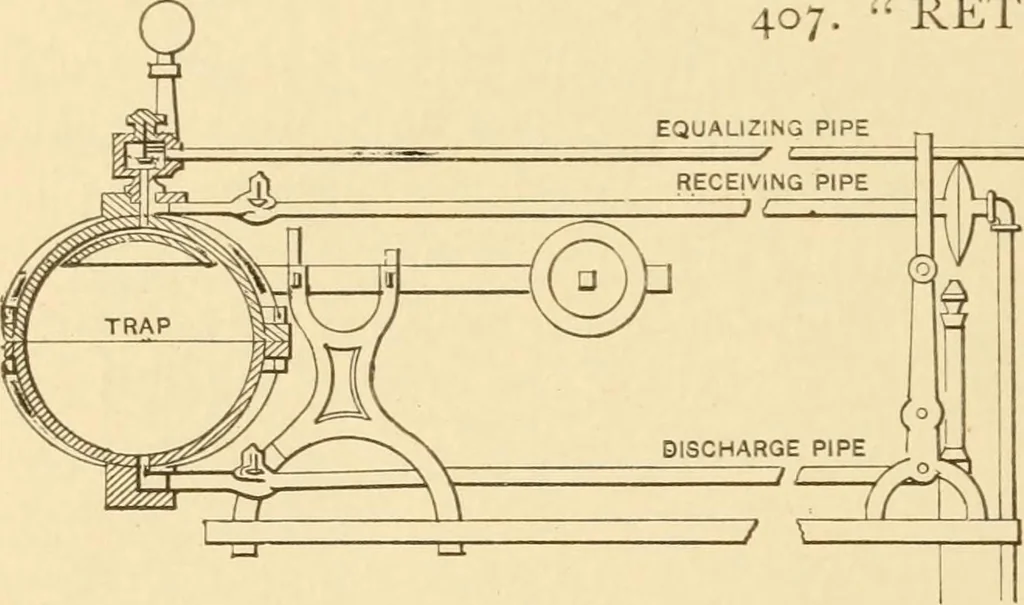

ocket, and isdrawn off through the valve. The glass gauge in-dicates the height of water in the pocket. 405. STEAM SEPARATOR, in line for hori-zontal pipes. The corrugated surface catches thewater of condensation, which falls through thegrating to the recess below. Austin model. 406. FILTER FOR… … RETURN STEAM TRAP, Blessing pattern. The trap is placed . j^ above the water line of the boiler. Theglobe is balancedon a weighted leverso that it rises whenempty and fallswhen filled withwater. The movement of the globe up and down trips valves thatalternately charge the globe with the water from…
