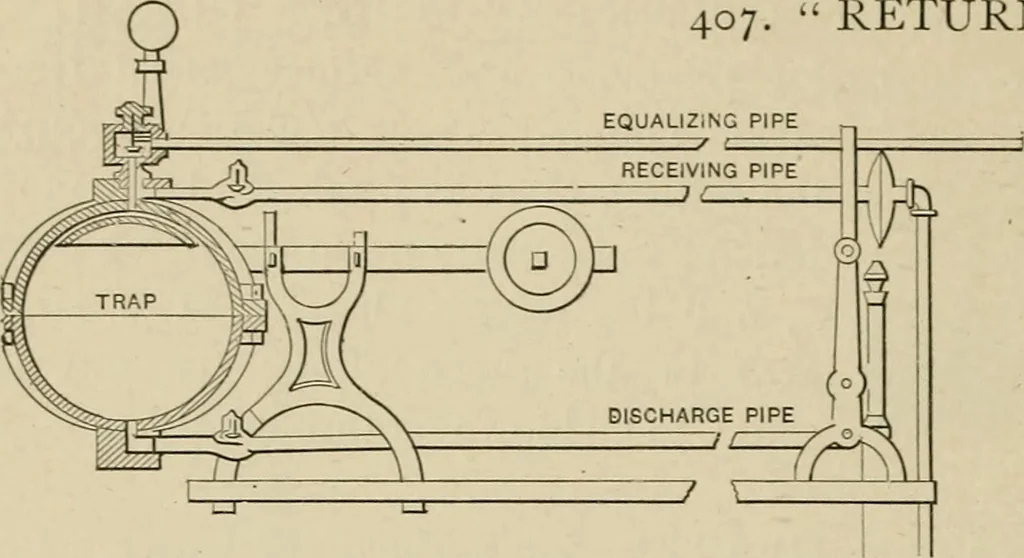

ocket, and isdrawn off through the valve. The glass gauge in-dicates the height of water in the pocket. 405. STEAM SEPARATOR, in line for hori-zontal pipes. The corrugated surface catches thewater of condensation, which falls through thegrating to the recess below. Austin model. 406. FILTER FOR… … 407. RETURN STEAM TRAP^ Blessing pattern.The trap is placedabove the water lineof the boiler. The globe is balancedon a weighted leverso that it rises whenempty and fallswhen filled withwater. The movement of the globe up and down trips valves thatalternately charge the globe with the water from a…
