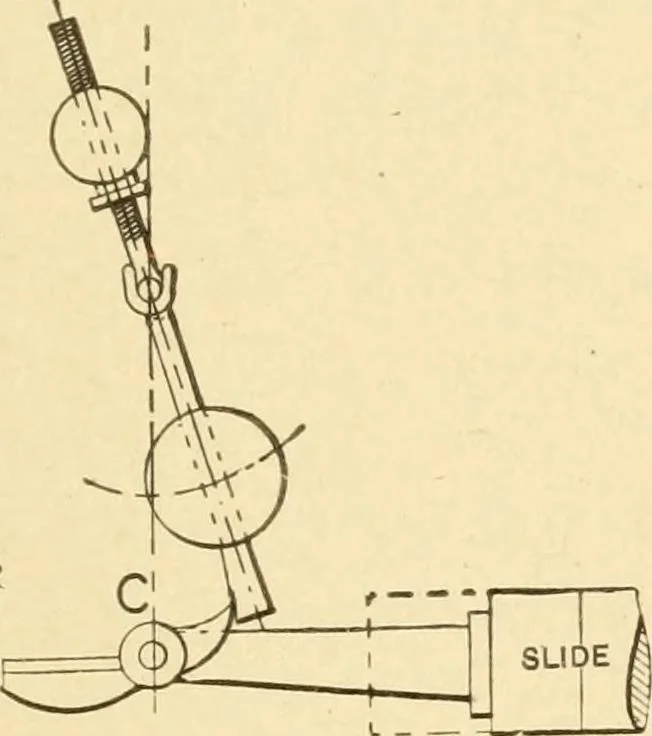

440. INERTIA GOVERNOR for a gas engine.The ball, J, is the inertia pendu-lum. It is pivoted to the frame, D,at L. It swings on the pivot atH, by the rotation of the cam, B,against the roller, C. The spring,K, is for adjusting the amount ofthe motion of the ball and its at-tached pick blade, G, for… … 441. PENDULUM GOVERNOR for a gas engine. The pendulumis adjusted by the distance of thesmall compensating ball to vibratesynchronously with the push rod atthe required speed of the engine.Increased speed releases the clip,and a miss charge is made. 442. DIFFERENTIAL CAM THROW, by the ^*^^…
