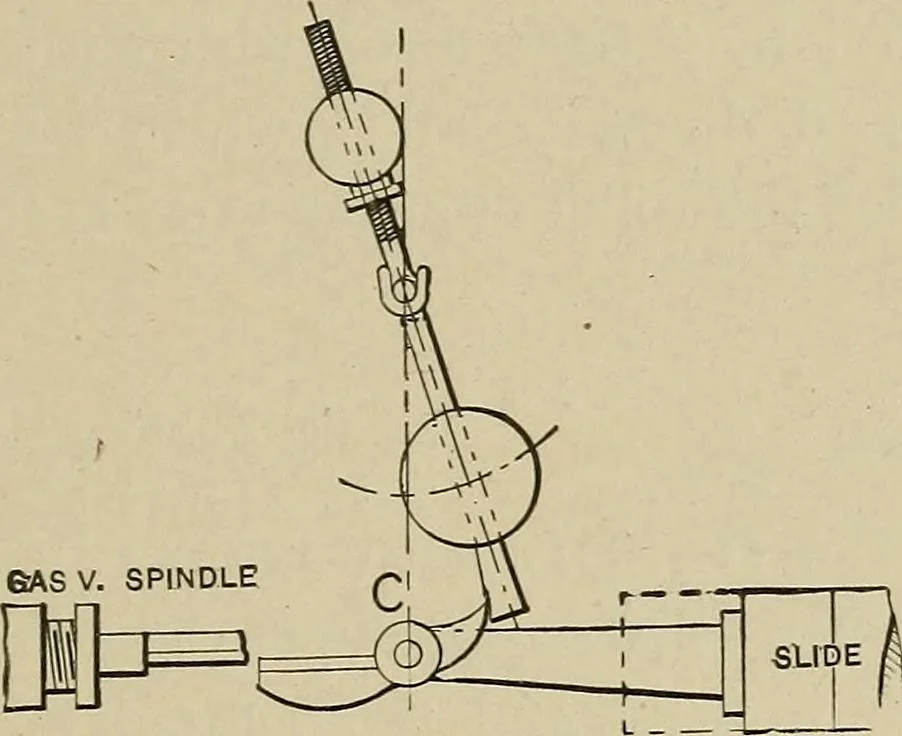

440. INERTIA GOVERNOR for a gas engine.The ball, J, is the inertia pendu-lum. It is pivoted to the frame, D^at L. It swings on the pivot atH, by the rotation of the cam, B,against the roller, C. The spring,K, is for adjusting the amount ofthe motion of the ball and its at-tached pick blade, G, for… … 441. PENDULUM GOVERNOR for a gas engine. The pendulumis adjusted by the distance of thesmall compensating ball to vibratesynchronously with the push rod atthe required speed of the engine.Increased speed releases the clip,,and a miss charge is made. 442. DIFFERENTIAL CAM THROW, by the transverse…
