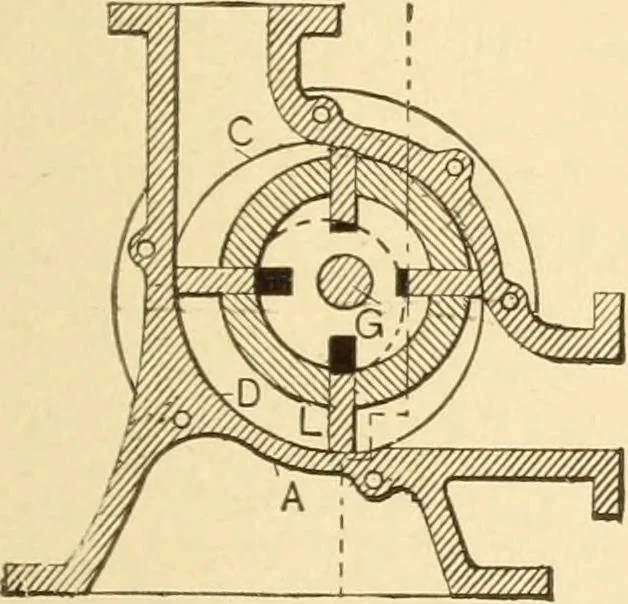

534. ROTARY PUMP OR MOTOR.— Can be run in either direction. The shell andwing drum are eccentric. The wings are guidedby projections running in a concentric groovein each head.
