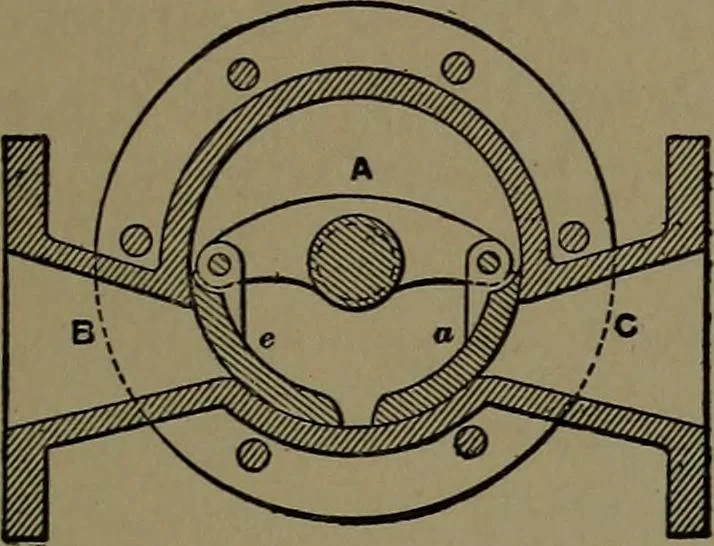

593. DOUBLE BEAT DISC VALVE.—Thecentral seat is borne by the cross bar in whichthe guide pin of the valve is set HYDRAULIC POWER AND DEVICES. 159 … 594. HYDRAULIC VALVE, used onelevators. Cylindrical in form, the valvesmove across the ports by a rock shaft andarms. A, pressure chamber. B, C, to elevatorcylinder.
