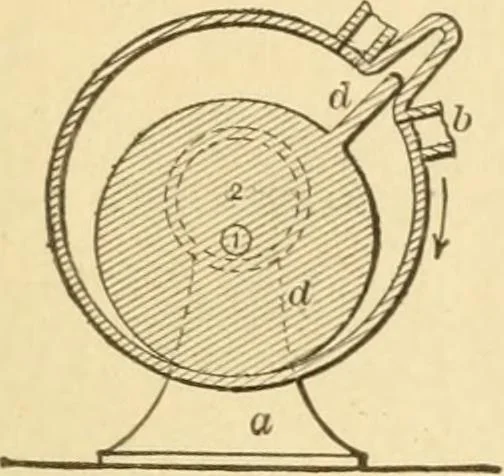

540. KNOTT ROTARY PUMP -A hol-low winged cylinder within which an eccentricrevolves on an axis central with the shell, causingthe winged cylinder to wipe the inner surface ofthe shell. The small slotted cylinder makes apacking for the wing. 541. PATTISON ROTARY PUMP.—A hollow winged cylinder in… … 542. COCHRANE ROTARY PUMP.—A b slide pocket in the outer shell receives the pistonwing of the inner eccentric cylinder, which swingsin contact with the shell on its centre, 2, carriedaround by a cam crank.
