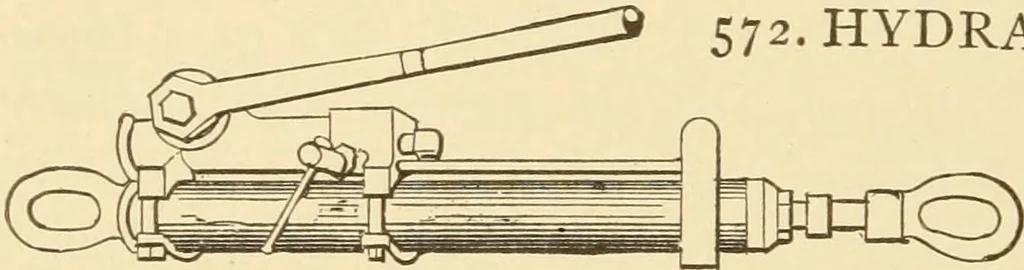

570, HYDRAULIC ELEVATOR LIFT with pul-ley sheaves central over plunger. HORIZONTAL HYDRAULIC ELEVATOR LIFT, with central-plunger pulley. Cable-~p-_^^^ winds on small pulley on drum shaft. For mE^ light lift. 572. HYDRAULIC PULLING JACK. — The lever operates a small pump which forces ^^::i/ water to…
