Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 317

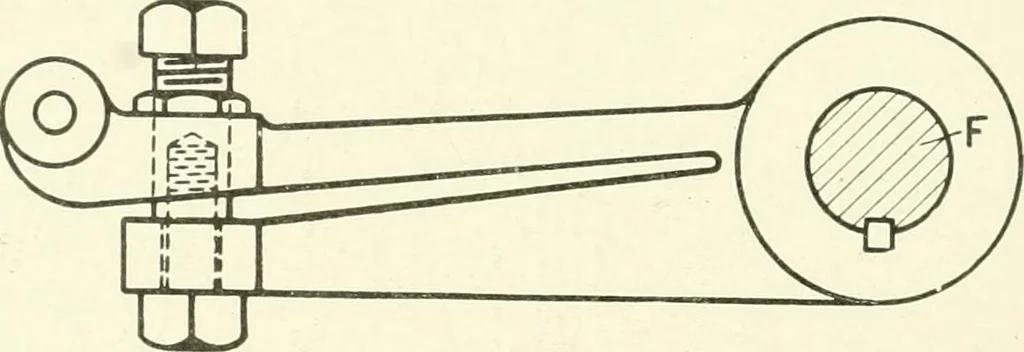

ient improvement for raisingthe narrowing mechanism; also an improved mechanism for pro-ducing the diamond point at the toe of the foot of a full-fashionedstocking. The raising and lowering of the whole narrowing mechanismis conveniently effected, and the narrowing machine is rigidly held inthe… … Fig. 180. Needle Bar Micrometer Adjustment. nection with a hand mechanism for operating lever 21, comprising abell-crank 25, 26, loosely mounted on the shaft 12, and having itsshort arm connected by a pivoted rod 27 to an arm 28 on shaft 29.The turning of the latter by the swinging of the…
Knitting machines
