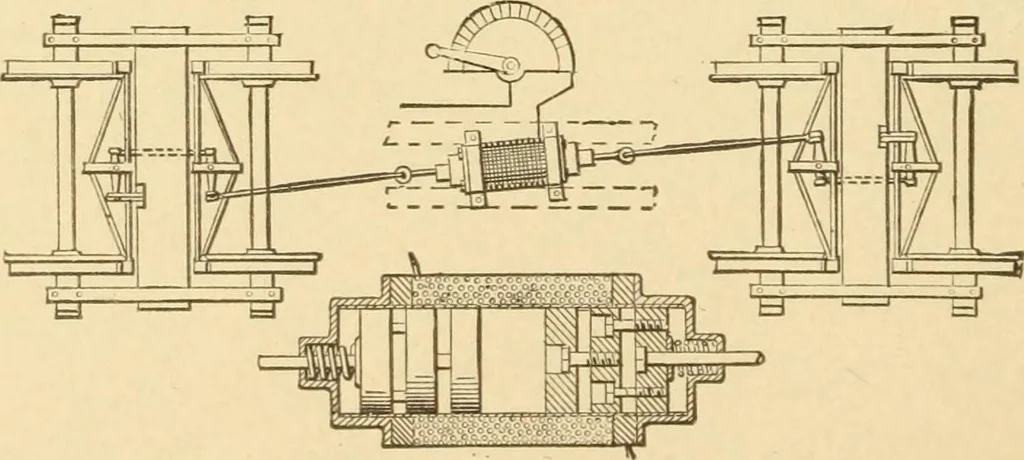

728. ELECTRIC STREET-CAR BRAKE.—A solenoid, oper-ated by the trolley current, pulls up the brake levers. The springs around the pistonrods hold back theconnections, actingas buffers. The pis-tons are dividedinto three partseach, to soften thejerk when turningon the electric current. … 729. Section of solenoid, with the take-up pistons. ELECTRIC PDWKR AND CONSTRUCTION. 195
