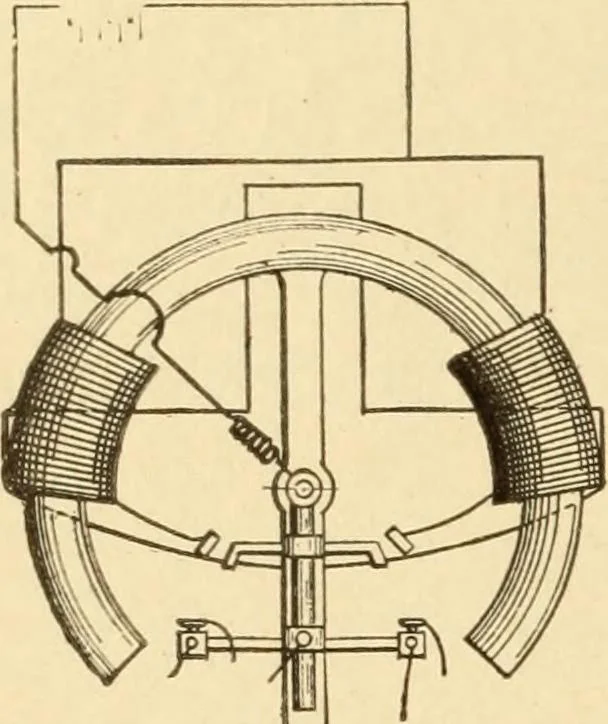

ation by a detent and im-pulse action of the electric current. Thebell crank lever L, L and its arms T, Tare actuated by the electro magnet and al-ternately strike the pallets P, P moving theescapement one tooth each at make andbreak of the circuit. 759^. PNEUMATIC EMER-GENCY BRAKE.—Instantaneous… … 759/. SOLENOID ELECTRIC FAN.—A circular magnet attached to a pivoted armand fan 1)lade, oscillates within two electriccoils by the alternate make and break of thecircuit from the battery by the contact fin-gers and studs. Requires no switch; sim-ply stopping or starting the fan blade putsit out and…
