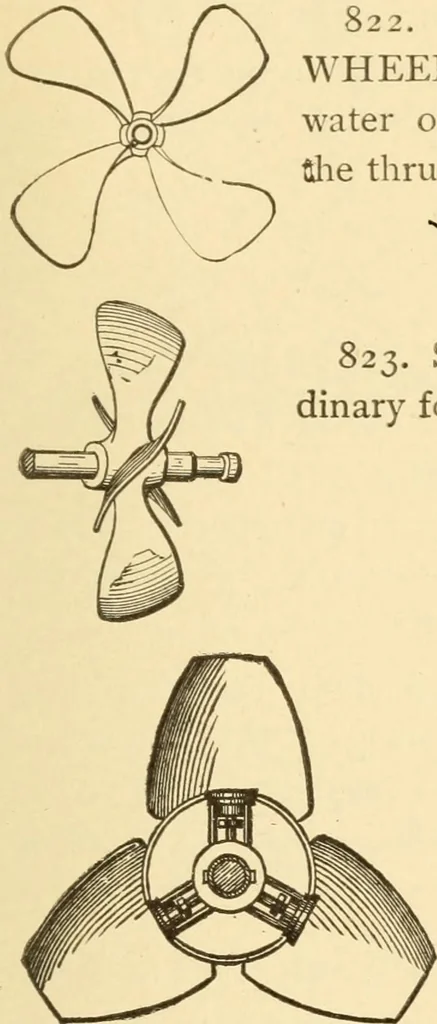

820. FEATHERING PAD-DLE WHEEL.—The buck-ets are hinged with back le-vers and turned to their properposition by arms pivoted ec-centric to the shaft. Theframework of the wheel is ofiron or steel. 821. Cross section. NAVIGATION AND ROADS. 215 … 2 2. OUTWARD THRUST PROPELLERWHEEL.—The blades pitch fonvard to throw thewater outward as well as backward, to increasealie thrust or power of the wheel. 23. SCREW PROPELLER. Four blades,dinary form for heavy draft tugs and tow-boats. Or. 824. SCREW PROPELLER, Griffithmodel. The inclination of the…
