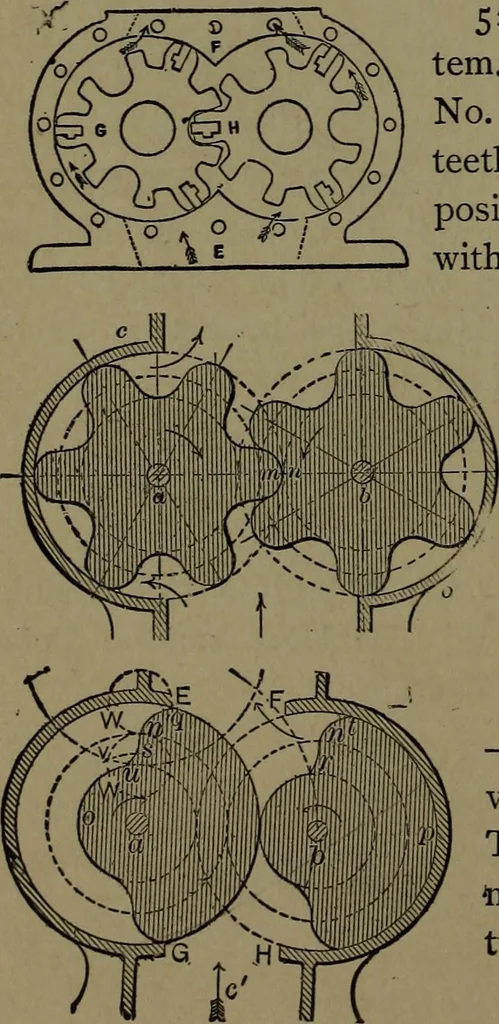

gteeth meshing into the recesses of the op-posite gear piston. Used in combinationwith No. 342 in the Silsby fire engine. 530. PAPPENHEIM ROTARYPUMP. — One of the earliest rotarydevices for raising water. Two deepcog-wheels with their teeth meshed androtating in a close-fitted shell. 531. REPSOLD… … HYDRAULIC POWER AND DEVICES. i4i 532-533- TRI-AXIALROTARY PUMP.—Alate French invention. Theupper cylinder receives thepower and rotates the lower ^ chambered cylinder?-j through three spur gears.The wings of the upper orpower cylinder are set fast and are the only rubbing surfaces. Thecylindrical…
