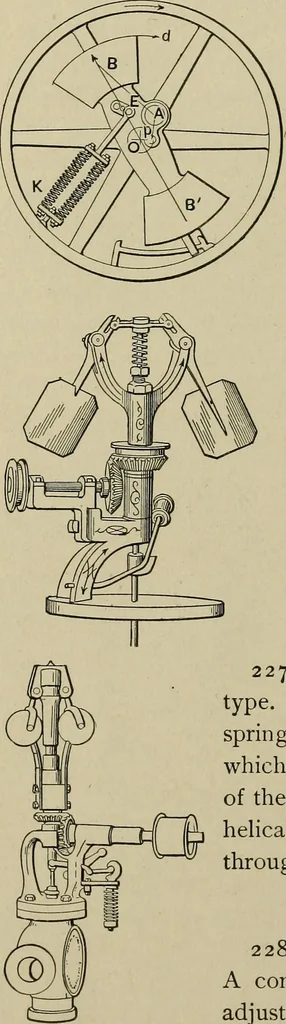

224. FRICTION POWER CON-TROLLER. Wicks patent. Transmits onlythe amount of horse-power it is set for. Thepower is given to the pulley, B, by the arm a,helical springs, and friction sectors. The sec-tors are thrust in contact with the pulley bythe adjustable links C, cams, and thrust bars. 98 STEAM… … 225. INERTIA GOVERNOR. Theweights B and B are balanced on the cen-ter line of the shaft arm, which is pinionedat A to the fly wheel or pulley and to theeccentric at /. The spring K holds theweights in normal position, their range ofmotion by differential momentum fromvariable speed of the engine…
