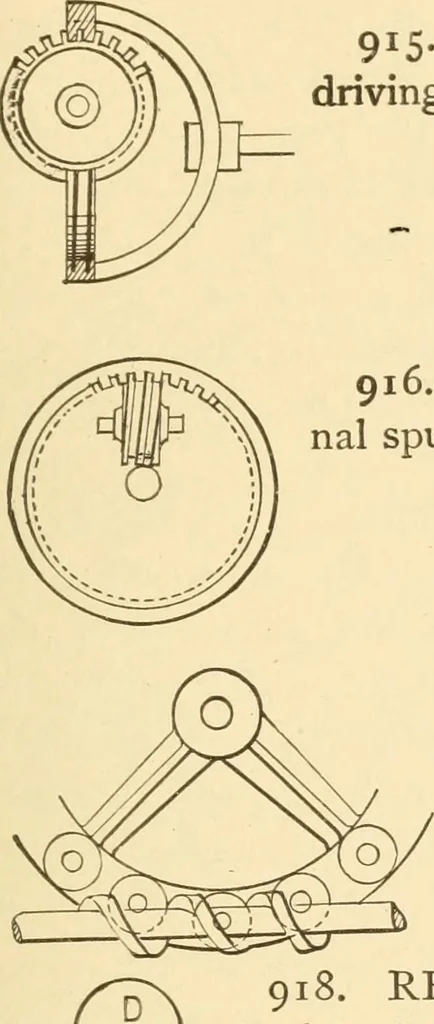

914. GLOBOID SPIRAL GEARWHEELS.—The revolution of the glo-boid gear A gives a variety of differen-tial motions to the spur gear B as itswings between the limits practicablewith the globoid teeth. GEARING. 23s … 915. INTERNAL WORM-GEAR WHEEL fordriving a spur-gear pinion.
