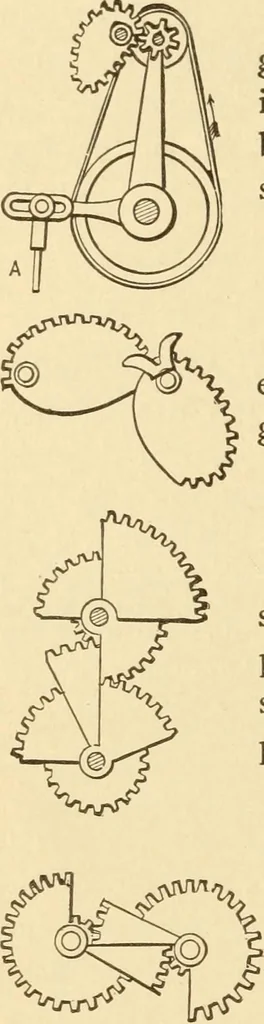

960. IRREGULAR VIBRATORY MOTION of an arm. A, from the rotary motion of a pinion,B 244 GEARING. … 961. VARIABLE VIBRATING MOTIONgiven to a rod, A, by the rotation of a pinion on anirregular-toothed wheel on a fixed axis; the pinionbeing carried by a bell-crank lever, with a variableslot adjustment. 962. MOTION BY ROLLING CONTACT ofelliptical half-geared wheels. The fork serves as aguide to…
