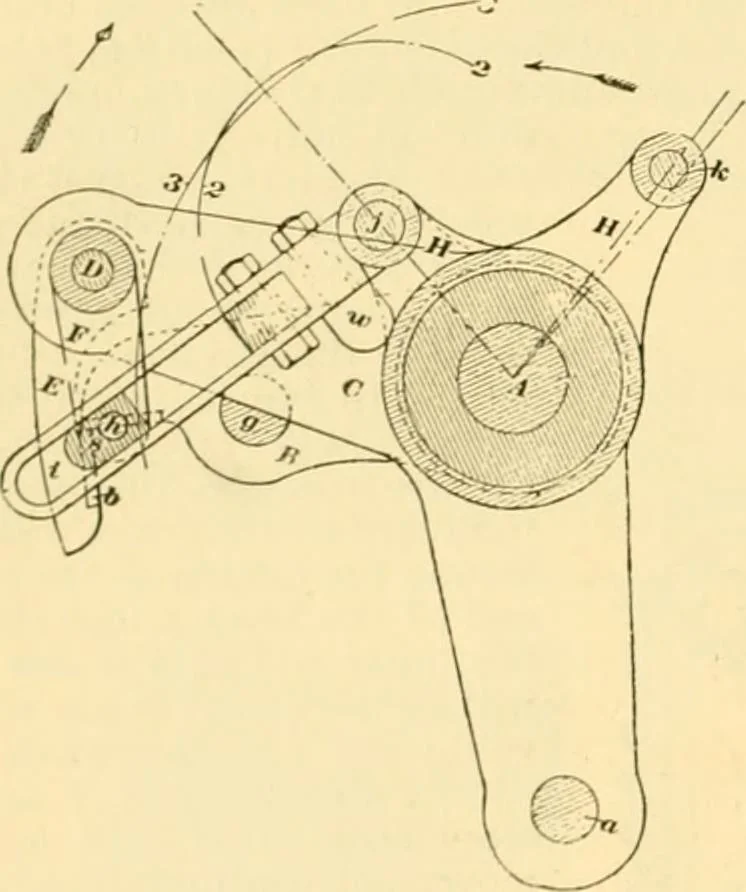

Fig. 51.—Front elevation. … Fio. 53.—Valve begins to open. ment « will be brought against the hub of the bell-crank, and the continued inovemcnt of the bell-crankwill cause the einbo.s.sment to act as a fulcrum, andthe lower side of the .slot / will cause the pin /* in theforked crank F to move outward, or from the centerof…
