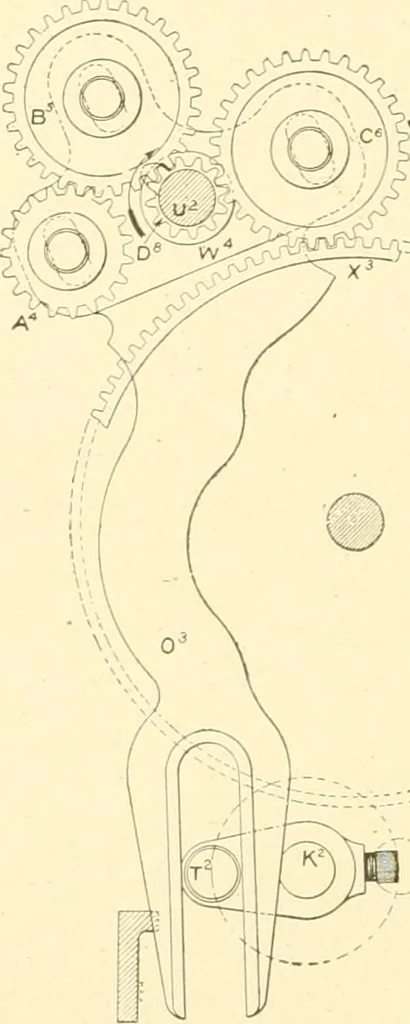

rts in positionto operate, when the end of the traverse is reached again. 245 204 COTTON SPINNING The drawings of the reverse gearing, in Figs. 171 and 172, showthe method employed to change the direction of the traverse of the rail. On the reverse shaft, K^, is a crank, T^, which Morks in a slot… … Fig. 171. Elevation Showing Reverse Crank and Gearing. the lav shaft and D* is upon the shaft, U^. The connection of theseshafts and gears with the lifting shaft is showni in the diagram of gear-ing (Fig. 164). When the rail is rising, the lifting shaft is driven through the gears,D^ and C^, and…
