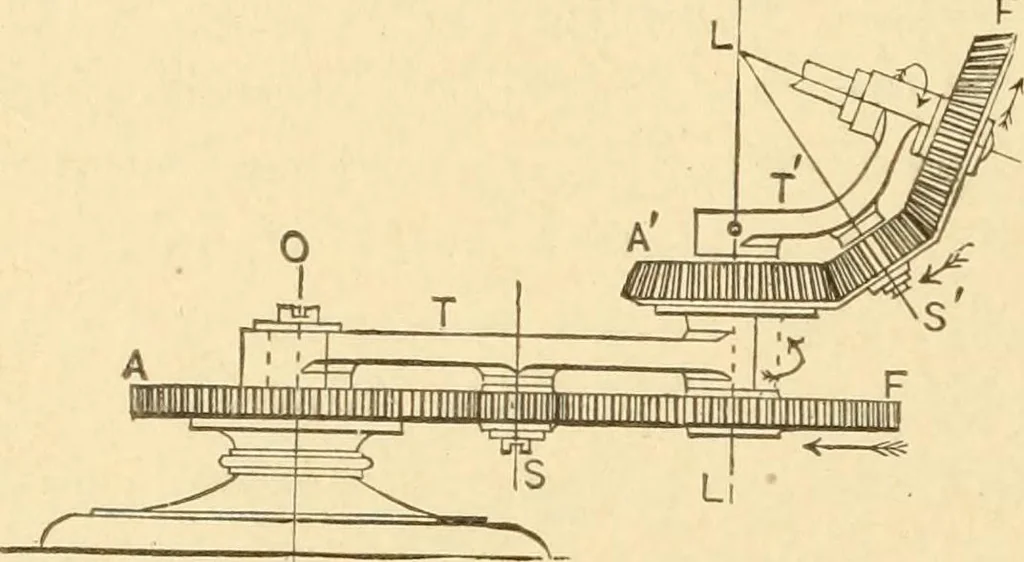

989. PLANETARY GEARTRAIN.—The arm T revolvesaround the fixed gear A, on theUjjg stand H. The gear B and bevel• gear E are lixed on a shaft andturn in one direction, giving acontrary motion to the bevel gear F and index hand P. p/ 990. PLANETARY GEARTRAIN. The arm T revolvesaround the fixed gear A.…
