Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 300

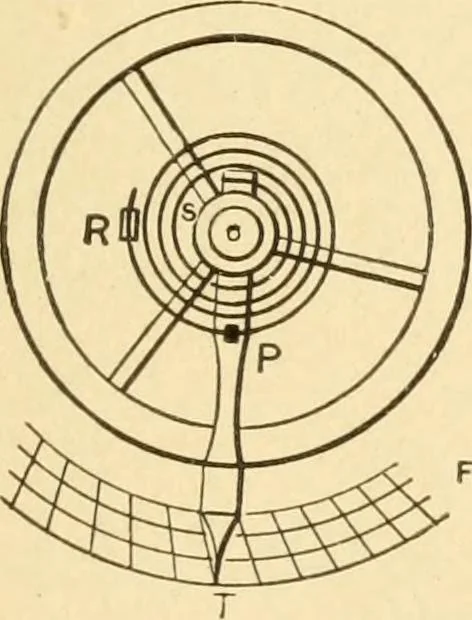

pringis attached, when the winding of the barrel canbe made without a back-set in the train. See No. 1168. the weights. 1174. COMPENSATION WATCH BAL-ANCE.—At the ends of the balance bar are at-tached compound sector bars, the inner sectionof which is of steel, and the outer section of brass.The… … 1175. WATCH REGULATOR.—The outerend of the balance spring is fixed to a stud atR, and the inner end to the balance wheelarbor. The index hand carries two curb pinsat P, between which the spring vibrates, form-ing a neutral point in its length which limitsthe arc of movement of the balance wheel,…
Mechanical movements
