Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 314

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 314

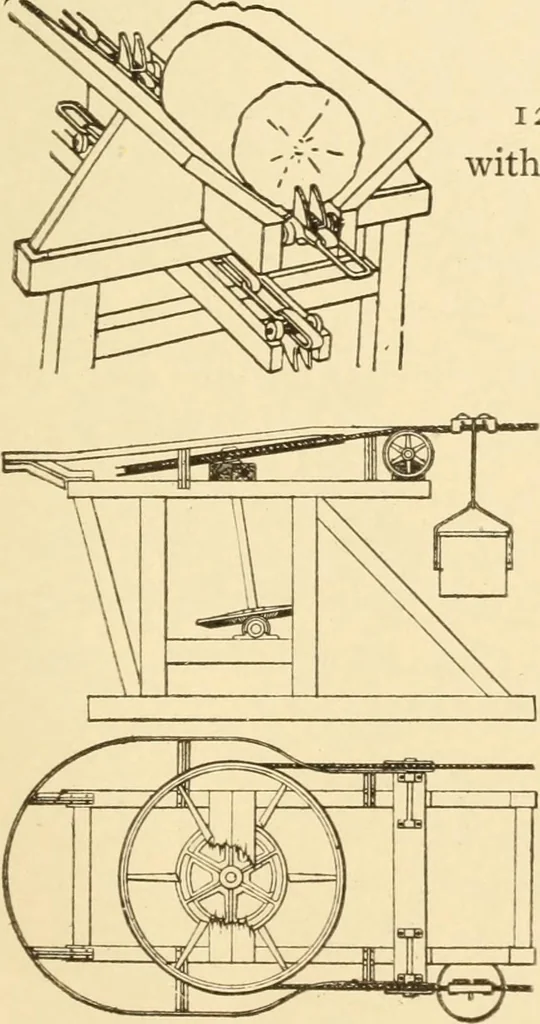

1225. CHAIN SCRAPER CON-VEYOR.—A chain supported on rollersand axles to which scrapers are fixedthat fit the conveyor trough. 1226. CABLEfixed to a cablereturning overhead CONVEYOR—Discsrunning in a trough and again into position for their next push 1227. DRIVING MECHANISM for a coal or grain… … 1228. LOG CONVEYOR.—A Hnk chainwith hooks running in a trough. 1229. ROPE TRAMWAY, over-head system. Elevation, showingthe switch rails for transferring thecarrier bucket around the terminal tothe return rope. Loading or unload-ing of the bucket is done at thetransfer switch. 1230. Plan showing the…
