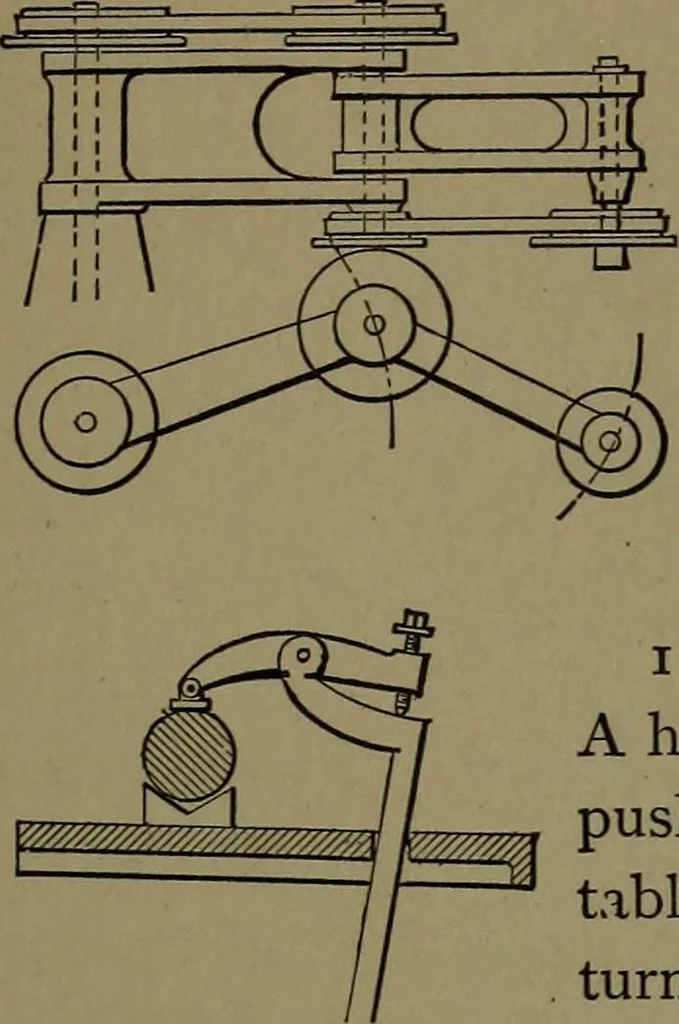

1325. BELT HOLDER, Wellingtonmodel. Does away with a loose pulley. Thebelt is guided on to a set of rollers in a fixedframe at the side of the driving pulley. Savestime and avoids danger in putting on belts. MILL AND FACTORY APPLIANCES. 325 … 1326. JOINTED RADIAL ARM, for drilling machines, marble polishing, andother similar machines. Elevation. 1327. Plan, showing joints and action. 1328. DRILLING MACHINE CLAMP.— A handy tool about a drill press. The shank ispushed loosely through a hole in the drill-presstable until the lever bears on…
