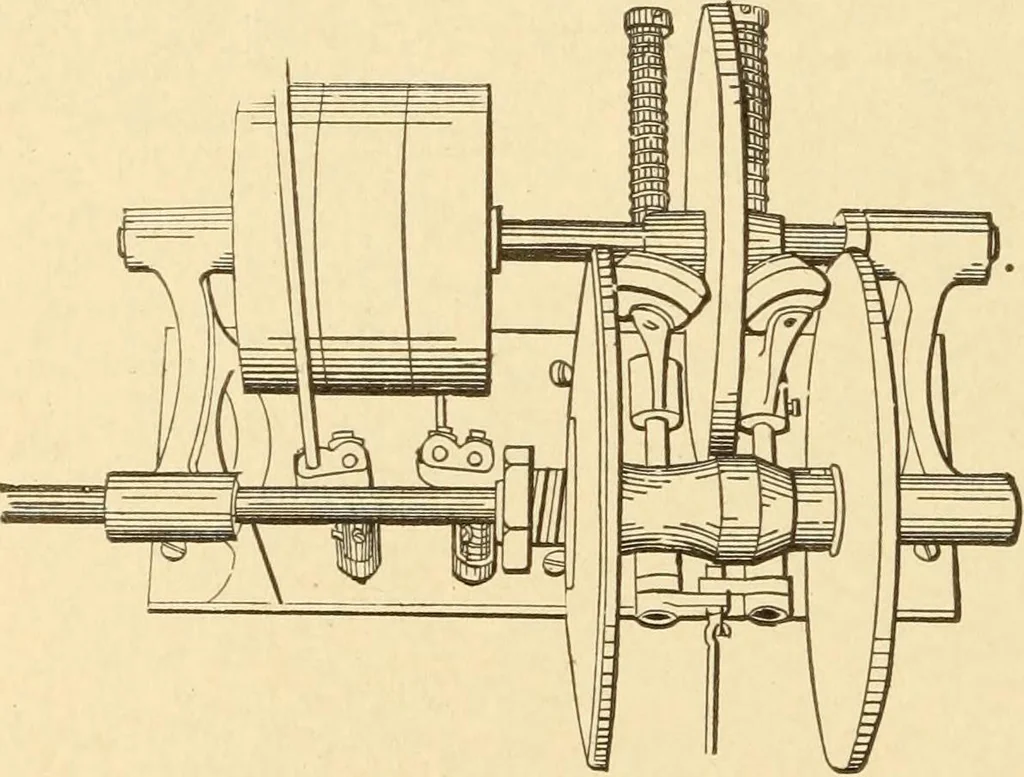

n inclined slide operated by a lever, rock shaft, and crank con-nection. 3^4- VARIABLE SPEED TRANSMITTING DEVICE.- A thin disc is fast on the counter shaft. Two discs drive the speed shaft, between which andthe driving disc are tworollers pivoted to trans-verse spindles. The rol-lers are kept to…
