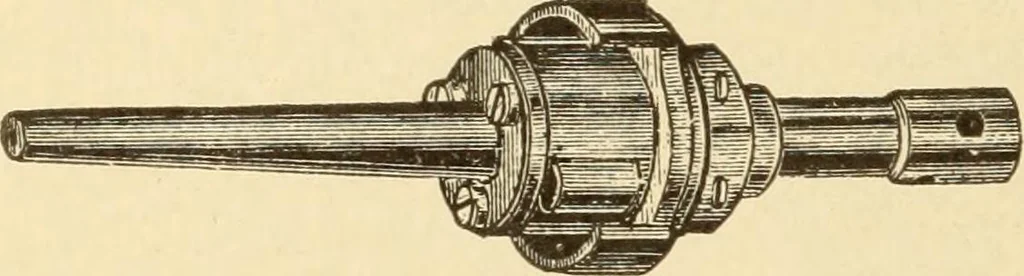

a conical driving pin. Prosser percussion type. A guard ring fixesthe proper position of the expanding grooves ofthe sectional sets to match the tube head. 1336. Longitudinal section. 1337. ROLLER TUBEEXPANDER.—The rollersare loosely fitted in a caseto hold them in position.The slightly tapered…
