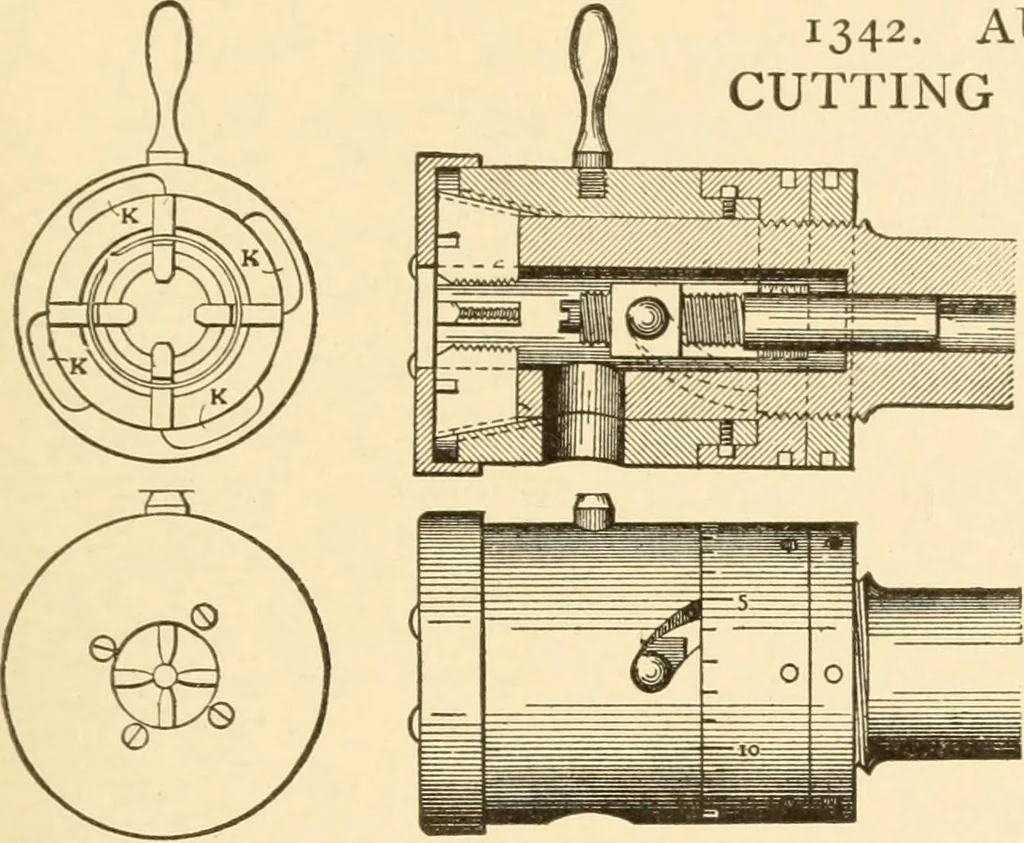

1341. WABBLE SAW, for cutting dovetai andrabbet grooves. MILL AND FACTORY APPLIANCES. 327 … 1342. AUTOMATIC SCREW-CUTTING DIK — The outsideshell is movable on theinner shell, which holdsthe cutters in slots. By-throwing the handleover, the cutters are re-leased from the screw.The centre pin, nut, andslot pin is the automaticrelease by contact withthe screw, which pushesback the slot pin…
