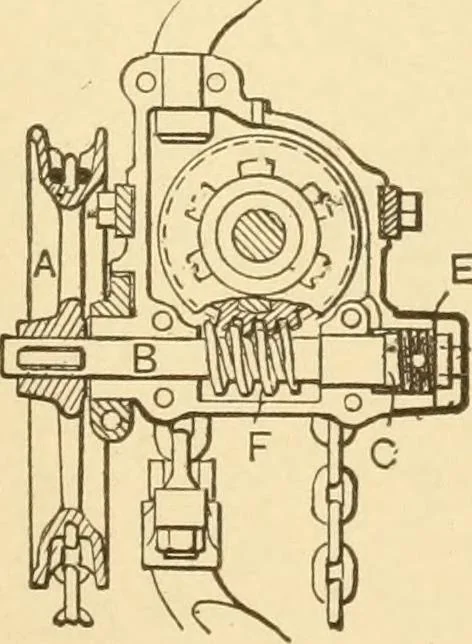

1411. HARRINGTON CHAIN HOIST.—Aworm gear operates a double-chain sprocket, withchains yoked at hook. 1412. YALE DUPLEX HOIST.—A wormF meshed in a gear on the same shaft with thehoisting-chain sprocket. A, Hand-chain sprocketon worm shaft B; C is a friction plug whichholds the worm from running…
