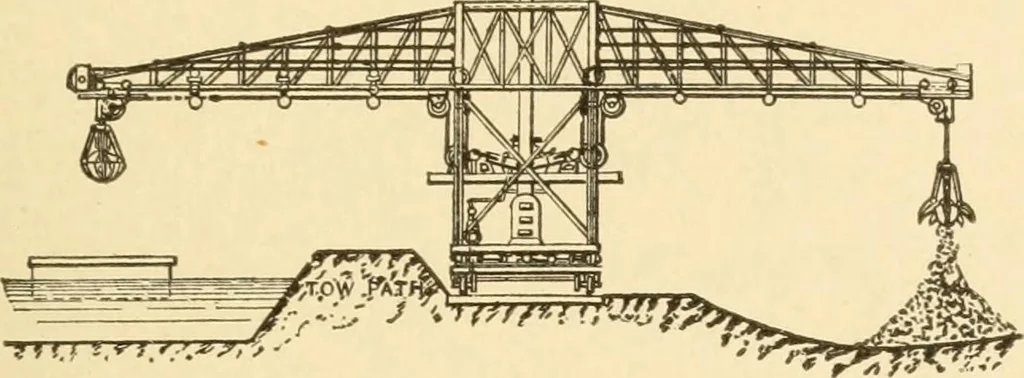

1471. CABLE HOIST AND CON-VEYER, for excavating canals andtrenches. The upper line is the cable,middle line the traveller, and lower linesoperate the dumping device. CONSTRUCTION AND DEVICES. 355 1472. CANTILEVER HOISTING AND CONVEYING MA-CHINE, Lancaster system. The trussed booms and standing… … -^—^-r~^ 1473. TIMBER SPLICING.—The straight? splice bolted. \iji >^i 1 u -^ 474. TIMBER SPLICING. —The lap splice with iron ^^ keys and bolts. 1475. TIMBER SPLICING.—-The lap splice with oak keys^ and yoke straps. ^ ^ A A. 1476. TIMBER SPLICING.~Ascarf and butt joint with one fish plate,bolted.…
