Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 310

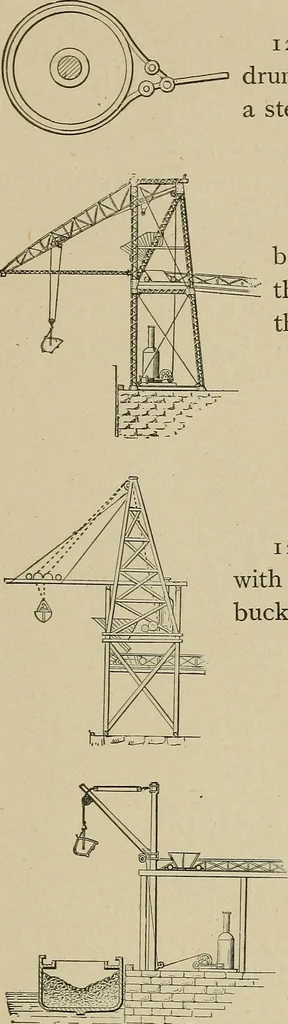

1211. STEAM HOISTING ENGINE, with flat chain drum and reversing link.The flat chain winds upon itself on anarrow drum. MINING. 3or … 1212. STRAP BRAKE, used on hoistingdrums and wheels. The strap is usually made ofa steel band with its ends jointed to a lever. 1213. ELEVATOR TOWER with inclinedboom. The bucket is lifted to the trolley bythe double tackle, drawn up the incline, andthe load dumped automatically into a car. 1214.…
Mechanical movements
