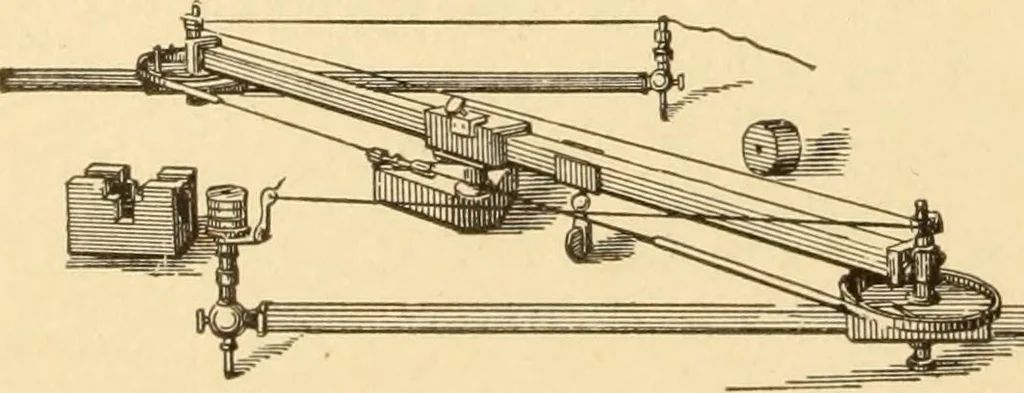

15316. ODONTOGRAPH. — Ascribe template for laying out thecurves of the teeth of gear wheels. 1531C. SECTION LINERS.—Anopen triangle with a stop slide pivotedto links with the spacing adjusted bya stop pin and cam sector. … 1531J. EIDOGRAPH.—An instrument of precisionin reproducing drawings,reduced or enlarged. Sim-ultaneous motions are trans-mitted from the tracer to^ the pencil through the mo-tion of pulleys on the cen-tral beam operated by asteel band. DRAUGHTING DEVICES. 369
