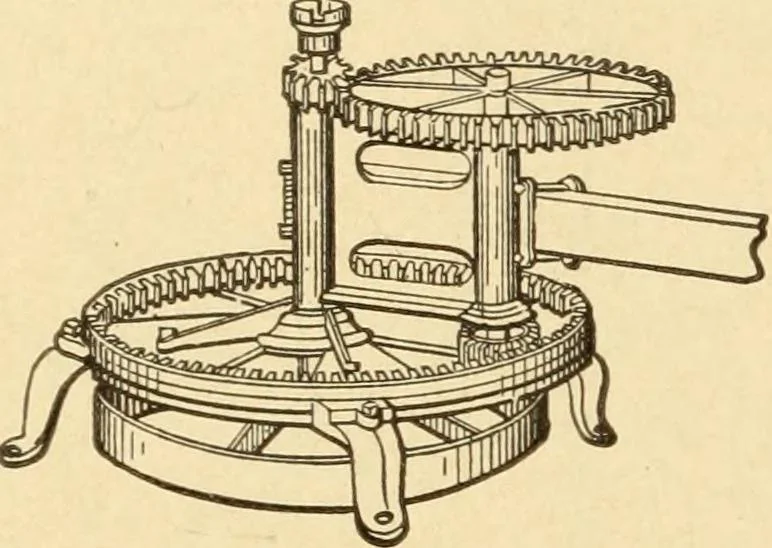

1535. DOG-POWER MACHINE. —The plane of the track wheel is setat an angle of about 200, with itsunder edgebearing upon a frictionpulley. Shaft and fly-wheel, withcrank for operating churn. … 1536. GEARED HORSE-POWER. —The sweep carries the pinion and spurgear on the second shaft around thestationary spur gear, rotating the centralshaft and pulley at high speed.
