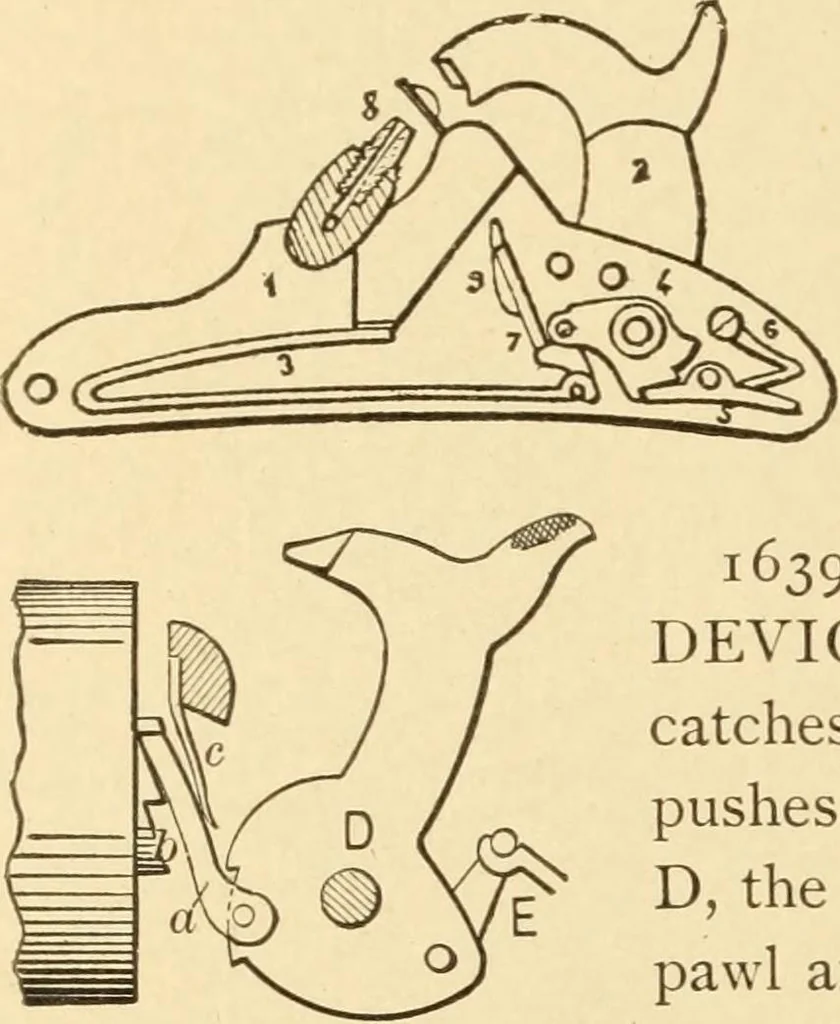

arms. The air-mix-ing holes are on each side of the arms. Ger-man. Gleason Manufacturing Company. 1636. ACETYLENE BURNER.—A double flame burner at right angles. The small holesin the sides of the tips allow air to enter andmingle with the acetylene gas before it isignited, thus making a mixture of… … 1638. GUN LOCK.—I, lock plate;2, hammer; 3, mainspring; 4, tum-bler; 5, sear or trigger lever; 6, sealspring. 1639. COLT CYLINDER REVOLVINGDEVICE for firearms. a, the pawl thatcatches the circular ratchet b; r, a. spring thatpushes the pawl into the teeth of the ratchet;D, the hammer butt to which…
