Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 44

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 44

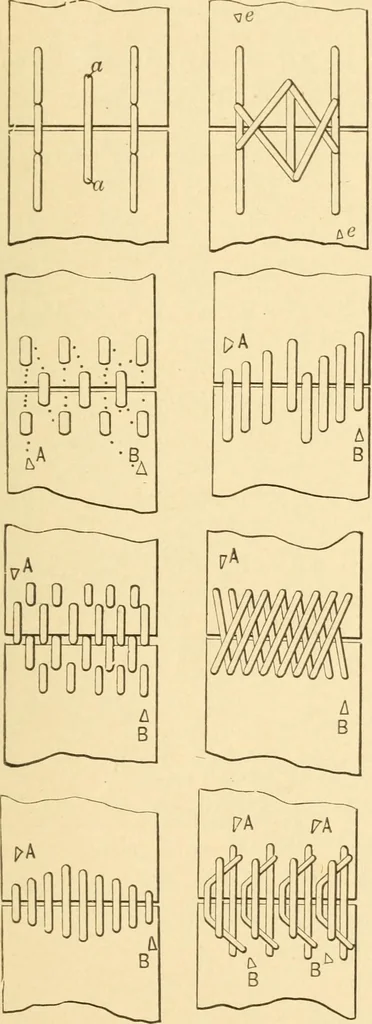

quarter-turn belts. Drawlacing in to its centre at a, a oninside of belt, crossing on outsideof 70, and ending at e,e, 70. 71-72. BELT LACING, for nar-row belts. Draw in the lacing att7, a to its centre; lace each wayand back to centre, ending on theoutside of belt at ^, ^; 72. 73-74. BELT LACING,… … 75-76. BELT LACING, fornarrow belt. Commencing at a, aon the inside of belt 75, drawingthe lacing to its centre ; rove theends each way, ending at ^, e, 76. 77. BELT LACING.—Com-mencing at A and ending at B.Dotted lines on outside. 78. OVER-AND-OVER LAC>ING.—Commencing at A andending at B.…
