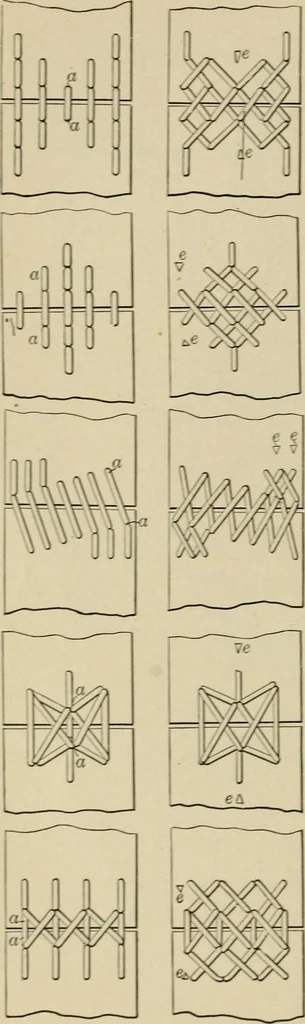

64. VERTICAL TENSION CARRIAGE, with slides and pulley guide. 32 TRAXSMISSIOX OF POWER. … 65-66. BELT LACIXG.—The straight lacing 65 should run nextthe pulley, while 66 represents theoutside of the belt. Lace shouldbe drawn in at a, <7, to centre : laceeach way out and return, endingat <f. /f, 66, on outside of belt. 67-^8. BELT LACING.—Inthis st}le the straight side shouldTixi…
