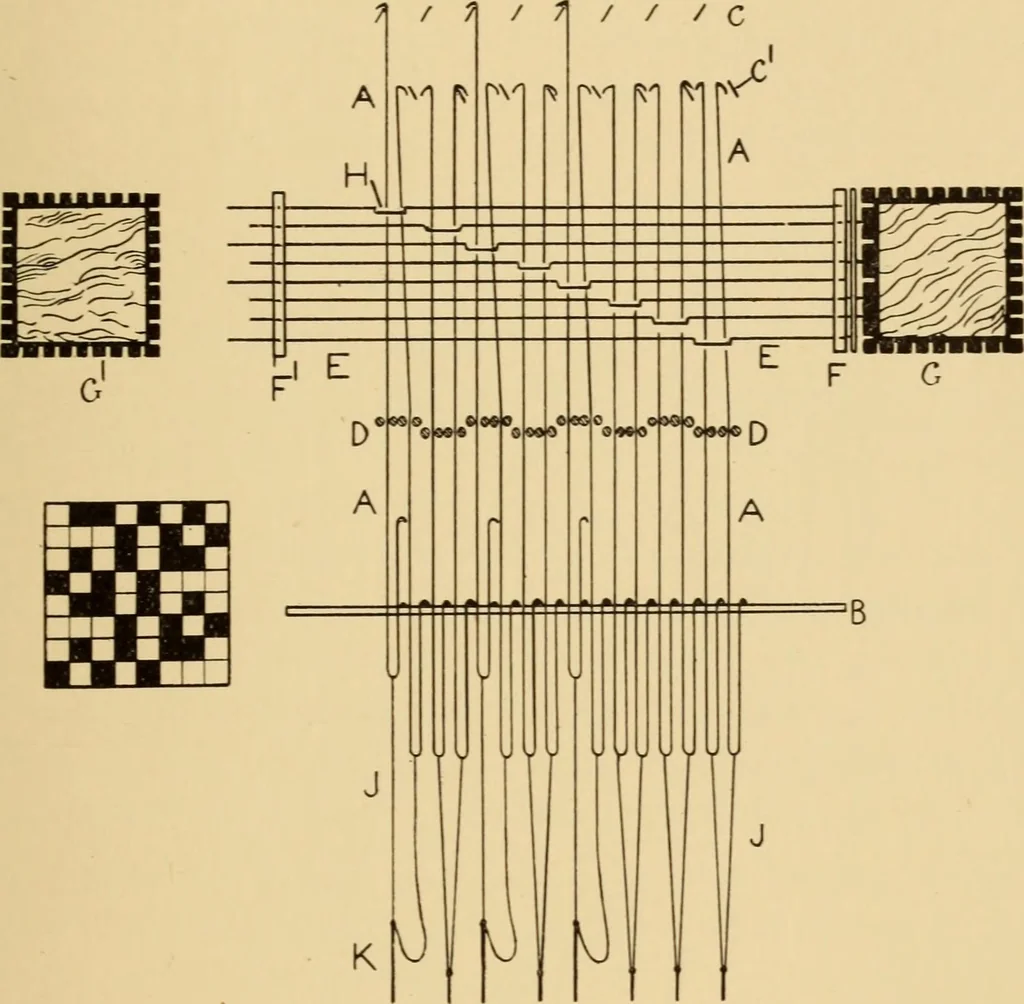

y over theknife blades, b is the resting board, c and c1 the griffe knives.d is a series of round rods, in pairs, one on each side of an upright; DOUBLE LIFT JACQUARD MACHINES. IO; these serve as a fulcrum against which the respective uprights canpress and so be induced to assume their normal… … Fig. ioi. Fig. ioo. e, the needle boards at f, f1, the card cylinders at g, g1, the neckcords at j, and the tug cords at k. A crank h is formed in eachneedle of sufficient length to just enclose two uprights. In the given illustration, to coincide with the first pick ofpattern Fig. ioi, griffe c is…
