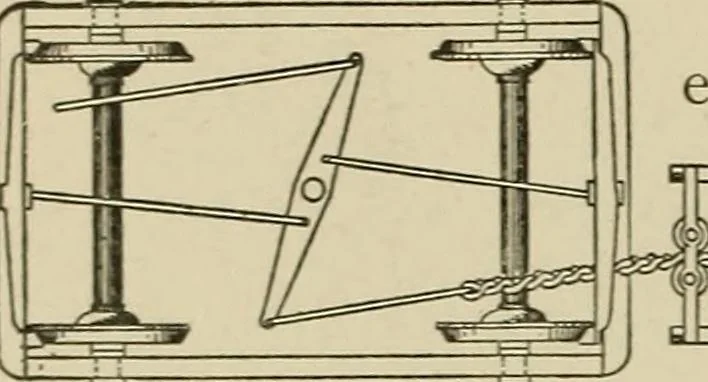

726. STREET RAILWAY SIXGLE MOTOR geared to bothaxles. Rae system. The motor is carried on a frame and isjournaled to both axles. 727. ELECTRIC CAR BRAKE.—An electric solenoid, operated directly from the ~-3...:^r trolley current, is used as ^J^^psC the power. Two iron cylin- ders, connected by a… … head, form a L^-shaped magnet, which is drawn into the solenoidswhen the current is turned into the coils. Regulation is made byswitches and rheostat 728. ELECTRIC STREET-CAR BRAKE.—A solenoid, oper-ated by the trolley current, pulls up the brake levers. The springs ^—-=>—^ _/^^^~^ r^ 1—^ -^B,…
