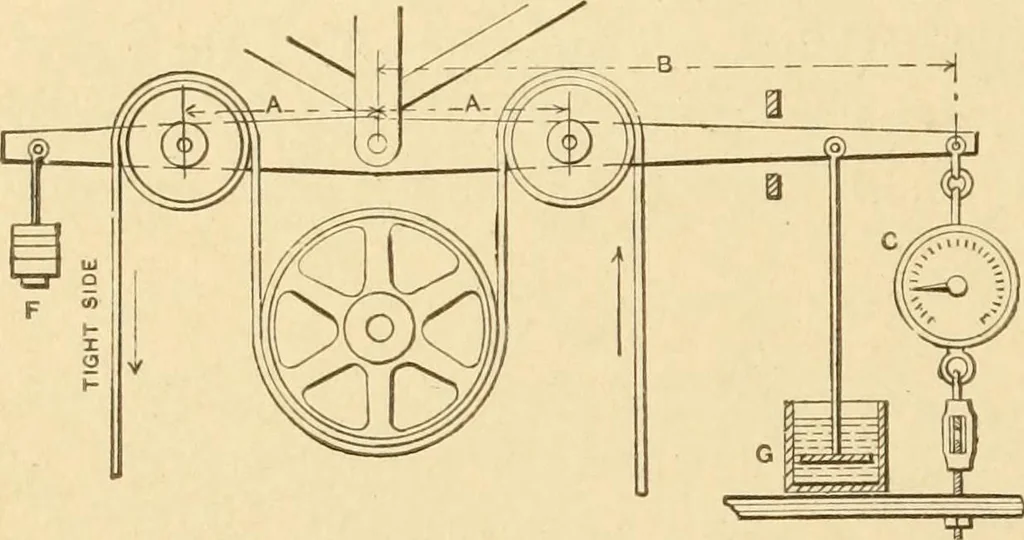

142. TATHAMSDYNAMOMETER, for avertical belt. A balanceframe lever, pulleys, anddash-pot. The work of the belt is: Wx^ X s33,000 ~ W — weight on scale.B z= length of lever. A = fulcrum to pulleys which should be equal.S = speed of belt in feet per minute. H.P.
