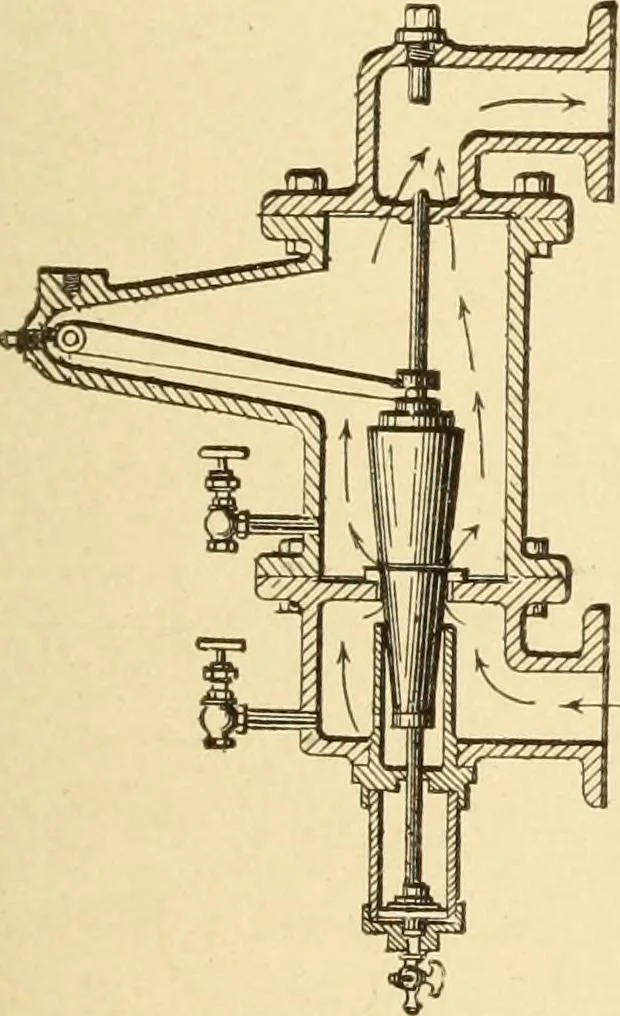

171a. THE ST. JOHNS STEAMMETER.—An automatic recordingmeter of the amount of steam passingthrough it for all purposes. The lift-ing of a conical valve by differentialpressure operates a marking indexthrough the lever on a small transfershaft through the projecting arm fromthe cylinder. See detailed… … 171b. DETAILS OF THE ST.JOHNS STEAM METER.—Thelifting of the conical valve by differ-ential pressure allows the requiredquantity of steam to pass through theannular area, which is the measure un-der the initial pressure. The valvelift is recorded on a strip of papermoved by a clock; the mean of…
